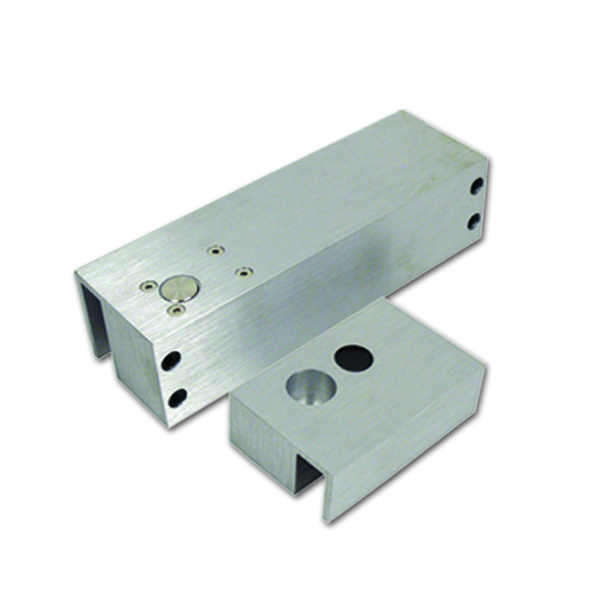

EB690L electronic door locking system including download bracket 12Volt DC
  • EB690L electronic door locking system including download bracket 12Volt DC
    • 1/1
  • EB690L electronic door locking system including download bracket 12Volt DC

EB690L electronic door locking system including download bracket 12Volt DC

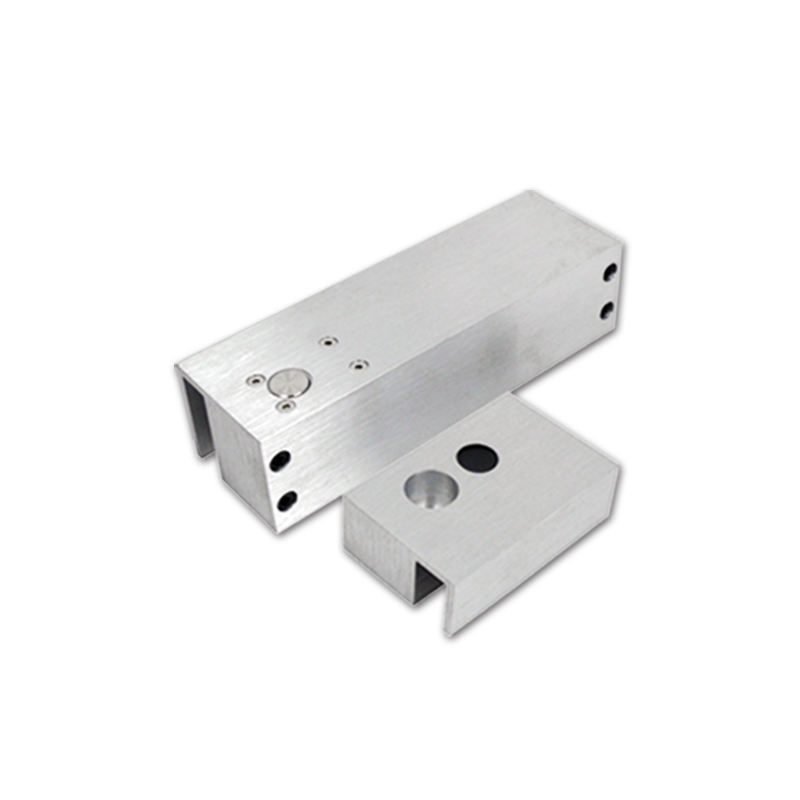

To Install On Left Side Door Electric Bolt EB690L Including Download Bracket
Electric lock EB690L suitable for no up frame glass door (Left)
Reservation Now
Detail




Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EB690L



Quick Detail:

Product Name:Electric Bolt

Holding Force:1000KG

Power Supply:12VDC

Delay Time:0/2.5/5/8s

Type Of The Door:No Up Frame Glass Door

Swinging Door:180


Features:

1. Power to Lock, Specially use to no up frame glass door

2. To install on Right side door, including download bracket

3. Signal output, Delay time(0/2.5/5/8)S

4.Operationaltemperature(normalatmospheric temperature+15)                            5. power supply:12VDC

6. starting current:800mA   standby current:800mA

7. installation: Glass thinkness <= 12mm; Space between up frame and door:   >=8mm; Swinging door 180


Specifications:


Lock type

Dimension

Electric lock

Lock Dimension: 188x58x48mm

Power to lock

Bracket Dimension: 90x58x29mm

Holding Force

Opening mode

1000Kg

Swinging door 180 degree

Power supply

Gross Weight

12VDC

1.4Kg

Current consumption

Environment

Starting current:800mA

Operation temperature: -20°C
~ 55°C

standby current:800mA

normal atmospheric temperature+18°C

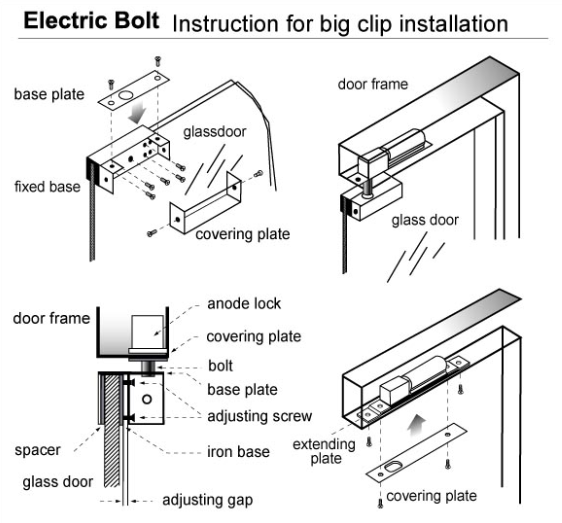

Bracket selection

APPLICATION DOOR

Installation bracket included

To install on Right side door, No Up frame glass door

Glass thickness <= 12mm; Space between up frame and door:
>=8mm

Function Support

Other Function

Signal output, Delay time(0/2.5/5/8)S

N/A
