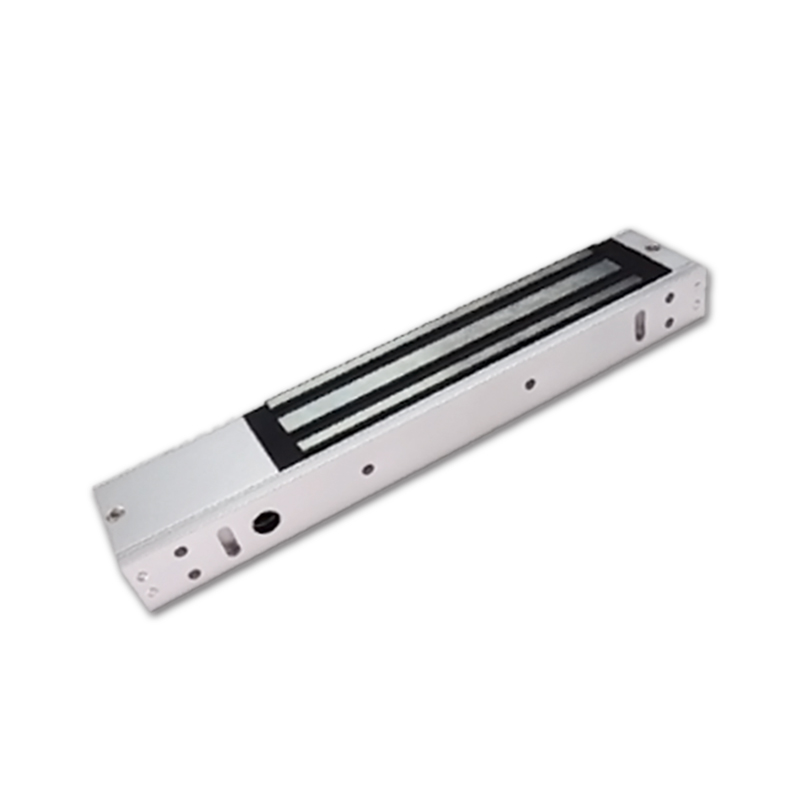

EM300A Security signal output electric lock / magnetic lock with U type , Z type bracket

Application Electric Magnetic Lock EM300A With Power To Lock Of Holding Force 300 KG

Reservation Now

Detail

Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EM300A

Quick Detail:

Product Name:Magnetic Lock

Holding Force:300KG

Power Supply:12VDC

Type Of The Door:All Type

Open Model:Swinging Door 90

Signal:NO, NC,COM

Features:

1. Power to lock;

2. Magnetic lock, no mechanical damage

3. power supply:12VDC

4. Holding force: 300KG

5. With LED, Signal output( NO, NC, com) or time delay.

6. starting current:330mA standby current:380mA

7. Swinging door 90

8. Application all type of door fire exit path, no frame

door can choose bracket

Specifications:

Lock type	Dimension
Magnetic lock	Lock Dimension: 240x56.5x29mm
Power to lock	Lock Dimension: 240x56.5x29mm
Holding Force	Opening mode
300Kg	Swinging door 90 degree
Power supply	Gross Weight
12VDC	2Kg
Current consumption	Environment
Starting current:330mA	Operation temperature: -20°C ~ 55°C
standby current:380mA	normal atmospheric temperature+8°C

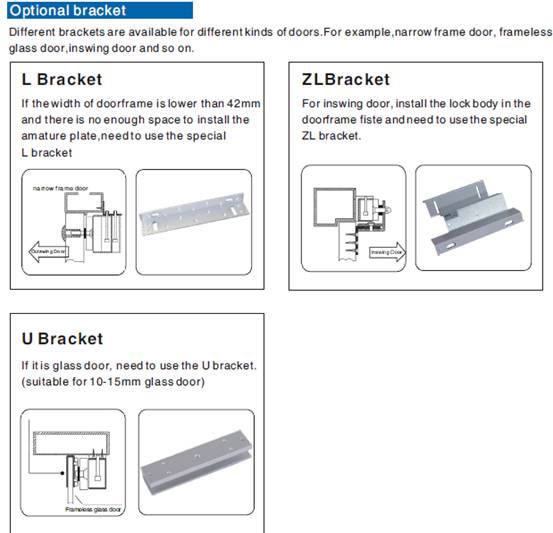

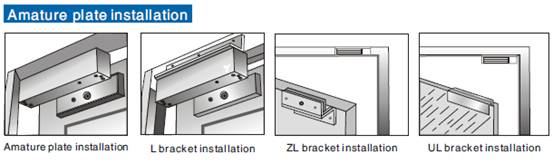

Bracket selection	APPLICATION DOOR
U type, Z type and L type (optional)
Function Support	Customize Function
LED, signal output( NO, NC, COM) or time delay(0, 5, 10S)	Time delay
