Visible Light Biometric Face Recognition Smart Access Control System
Communication: TCP / IP, USB, Optional Wi-Fi
LCD Display: 2.8-inch TFT Screen
Face Capacity: 100
Fingerprint Capacity: 500
Card Capacity: 500 (optional)
Log Capacity: 50,000
Attendance Status: Check In/out, Break In/out, OT In/out
Voltage: 5V 2A
Temperature: 0°C ~ 45°C

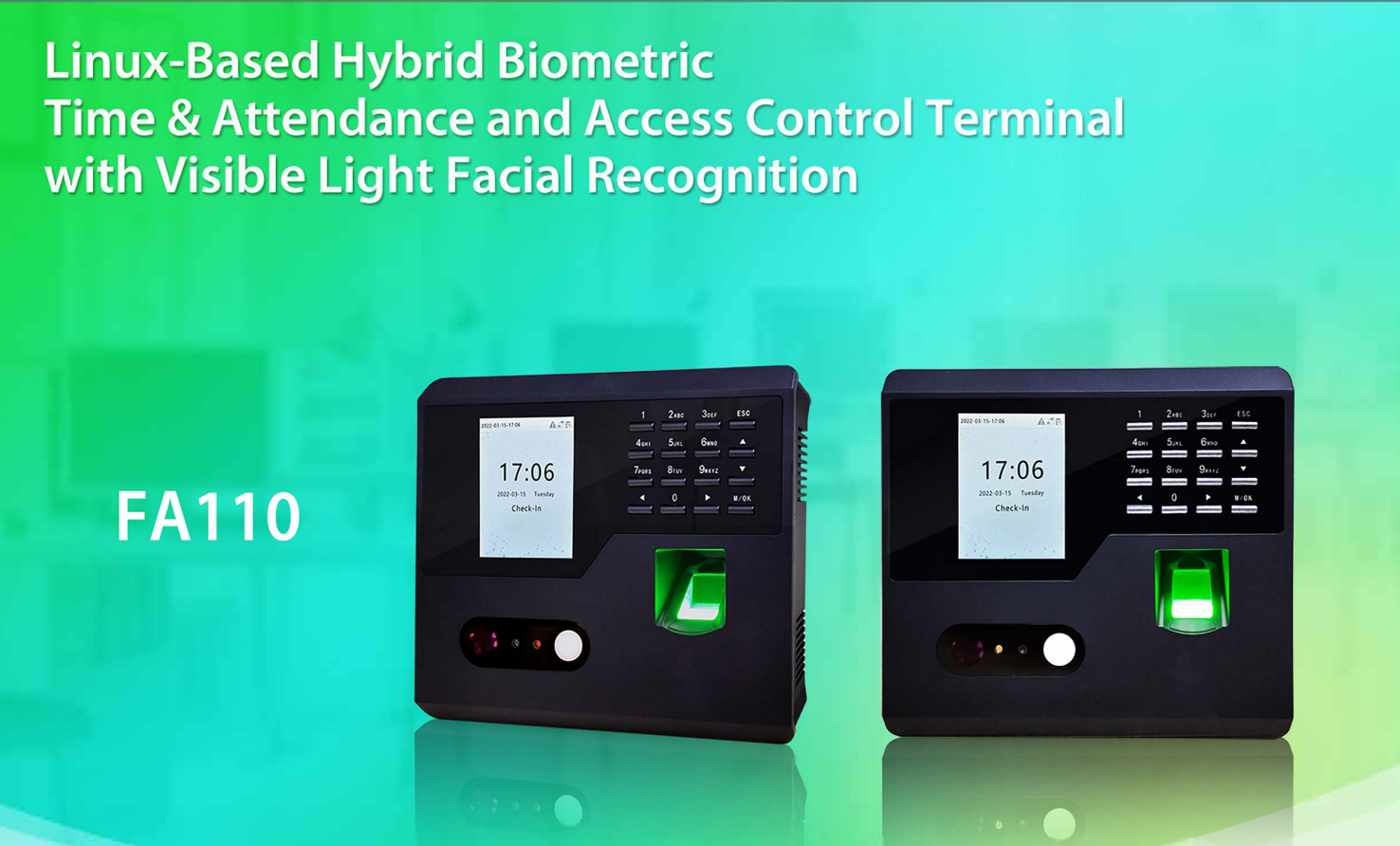

Visible Light Biometric Face Recognition Smart Access Control SystemFA110Biometric Recognition System Introduction
FA110 Biometric Face recognition smart access control system standalone RFID door access control time and attendance, WEB software Hybrid Biometric time attendance & access control fingerprint & RFID card & face recognition system. FA110 is new designed Face Recognition with a fingerprint reader, support time attendance and access control function, 100 faces, 500 fingerprints, 500 cards (optional), 50,000 logs, Linux Operating System, 2.8-inch touch screen, support TCP/IP, USB, also can customize WiFi. We have web-based software for management. The software support time attendance, access control, salary, and temperature management. It is easy to install on the wall.
FA110 is new designed Face Recognition with fingerprint reader, supports time attendance and access control function, 100 face, 500 fingerprint, 500 cards (optional), 50,000 logs, Linux Operating System, 2.8 inch touch screen, support TCP/IP, USB, also can customize WiFi. We have web based software for management. The software supports time attendance, access control, salary and temperature management. It is easy to install to the wall. Our devices support multi-languages, English, Spanish, Vietnamese, Thai, Indonesian, Russian, Italian, French, Hebrew, Portuguese, Korean, Chinese, Turkish, German and so on. User can select the language they need.
FA110 Biometric Recognition System Features
1) New design of Face recognition with fingerprint reader.
2) Large user capacity of 100 face, 500 fingerprints, 500 cards (optional), and 50,000 logs.
3) 2.8-inch TFT LCD.
4) Dual camera for real-time face detection, fast speed.
5) TCP/IP, USB port, optional WIFI.
6) Fast speed verification.
7) web server software to support time attendance, access control, payroll and temperature management.

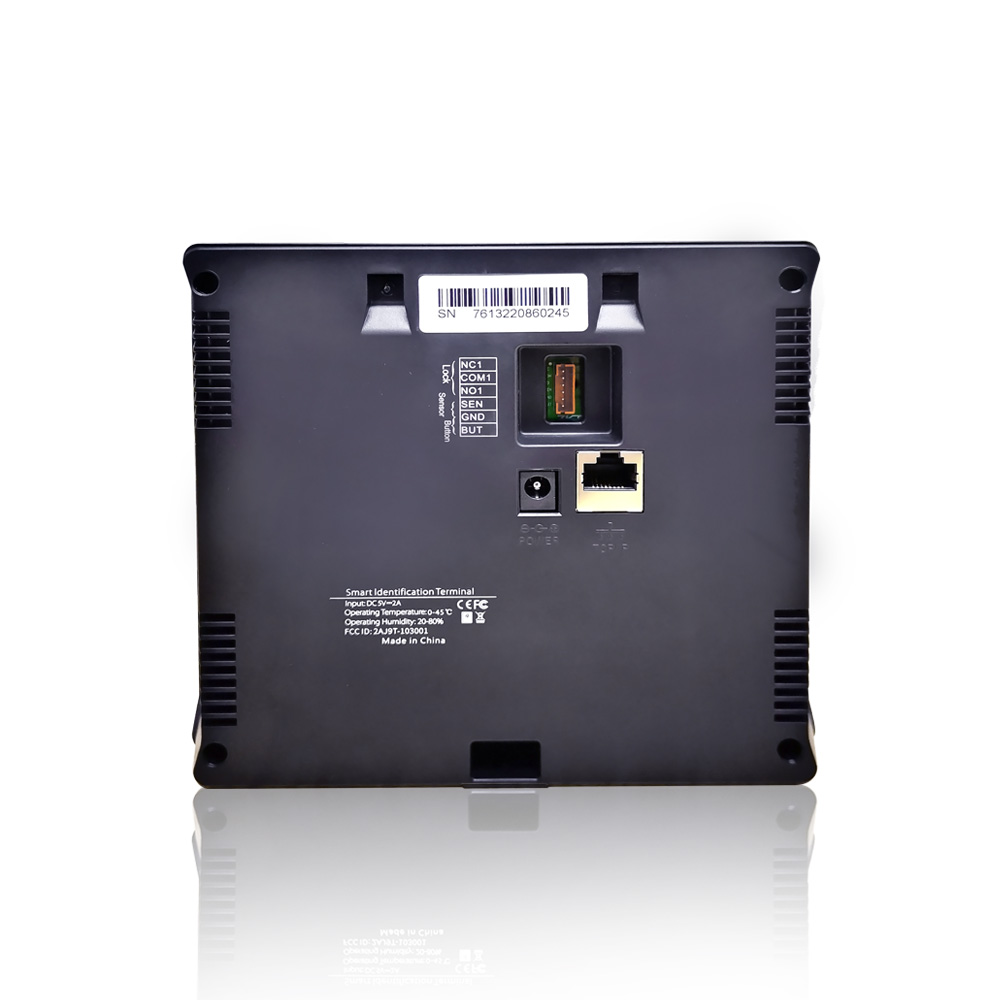

8) Built-in relay, interface for door lock, exit button and door sensor.
Specification
| Model | FA110 |
| Display | 2.8”Touch Screen |
| Face Capacity | 100 |
| Card Capacity | 500 |
| Fingerprint Capacity | 500 |
| Transactions | 50,000logs |
| Communition | TCP/IP, USB host, WiFi(optional) |
| Standard Functions | ADMS, T9 Input, DST, Camera, 9-digit User ID, Acceess Levels, Groups, Holidays, Anti-passback, Record Query, Tamper Switch Alarm, Multiple Verify Modes, SSR |
| Access Control Interface | 3rd Party Electric Lock,Exit Button,Door Sensor |
| Facial Recognition Speed | Less than 1 second |
| Power Supply | 5V/2A power adapter with different type plug such as UK plug, European plug, Amercian plug to work in different countries and regions. |
| Environment | Operation temperature: 0ºC-45ºC Operation humidity:20%-80% |
| Dimensions(W*H*D) | 168*152*32mm |

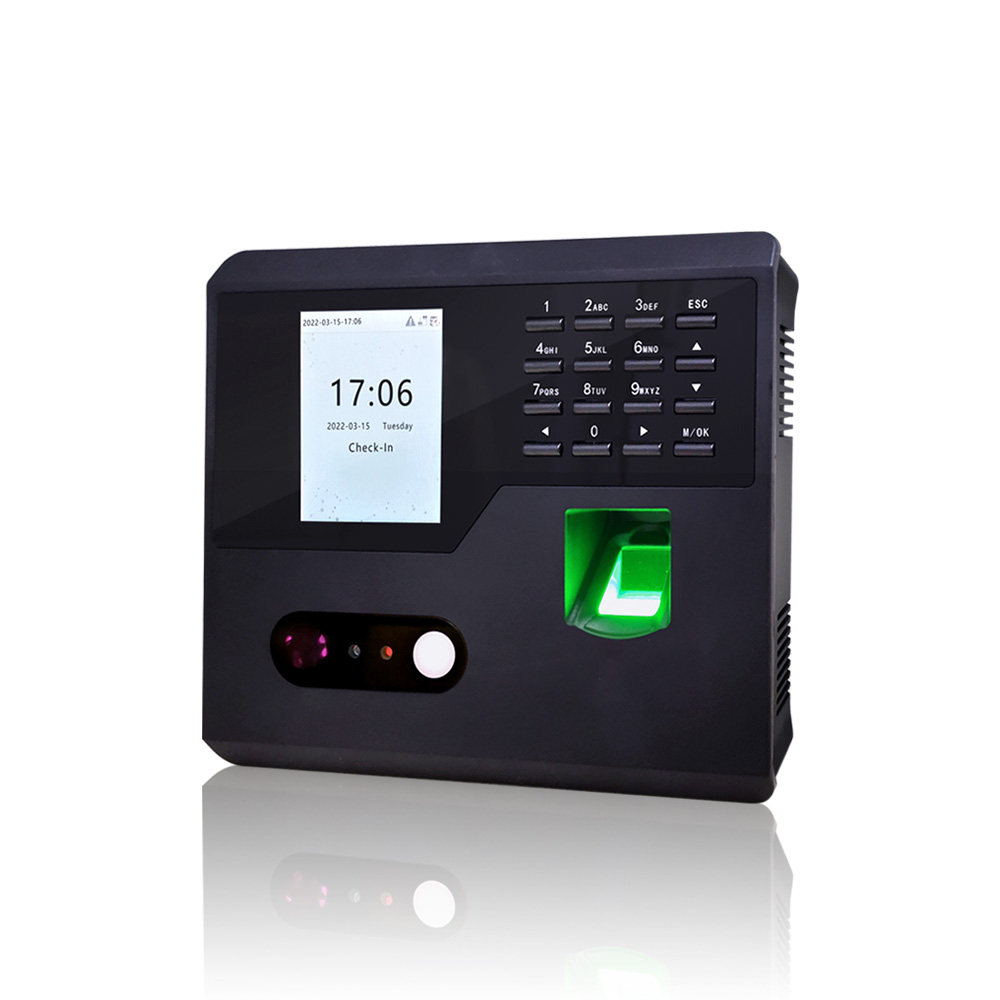

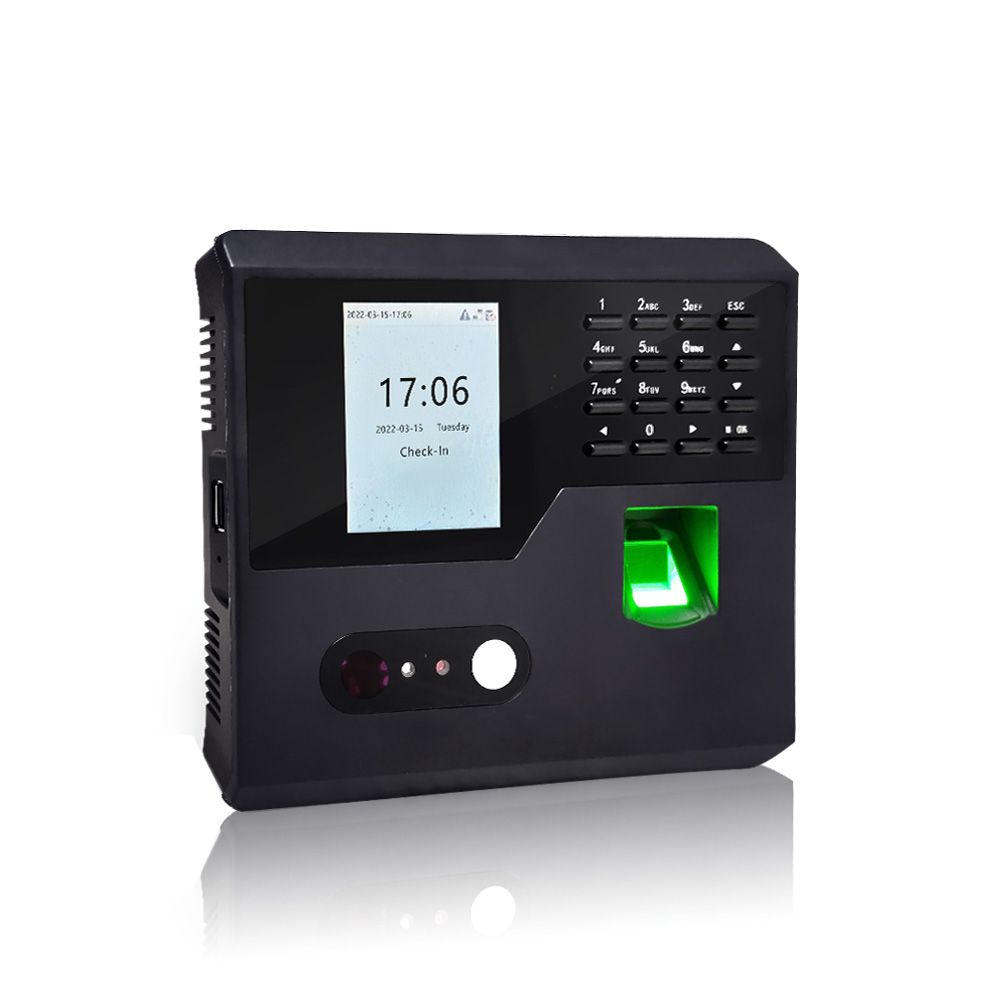

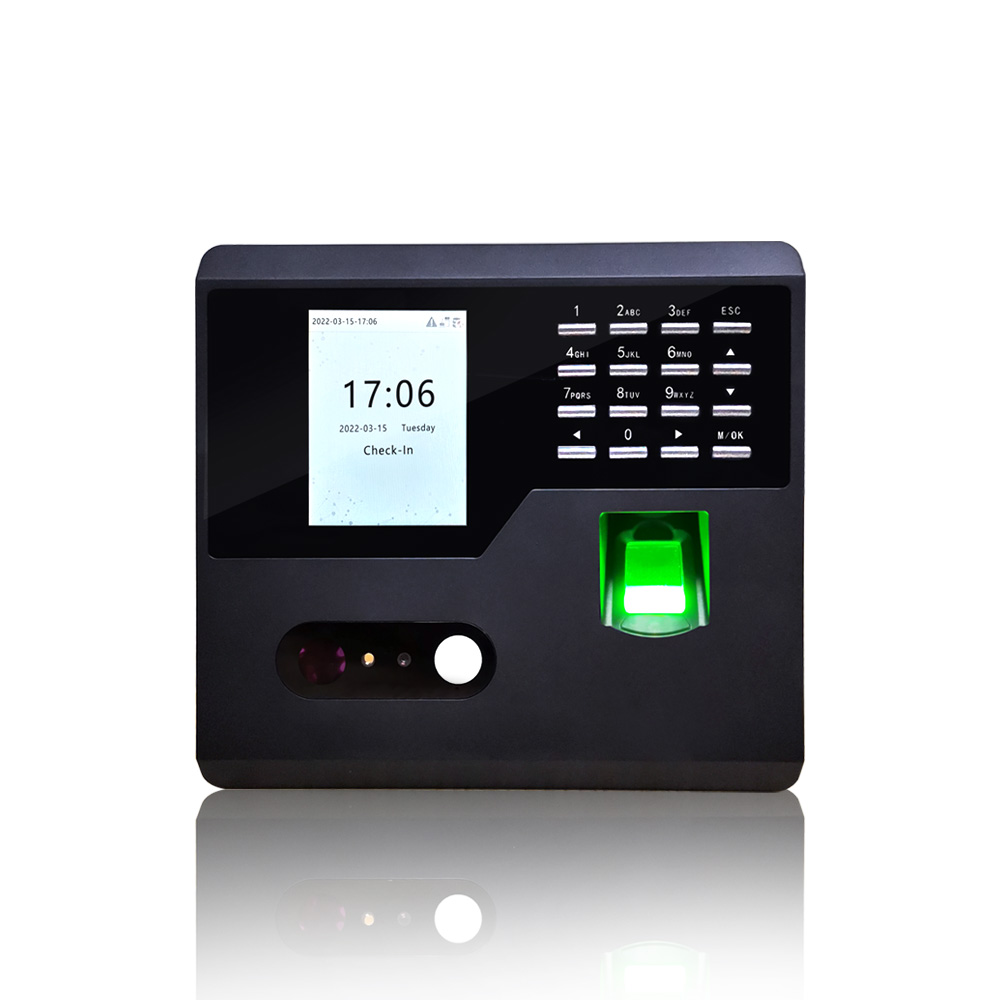

Product Display

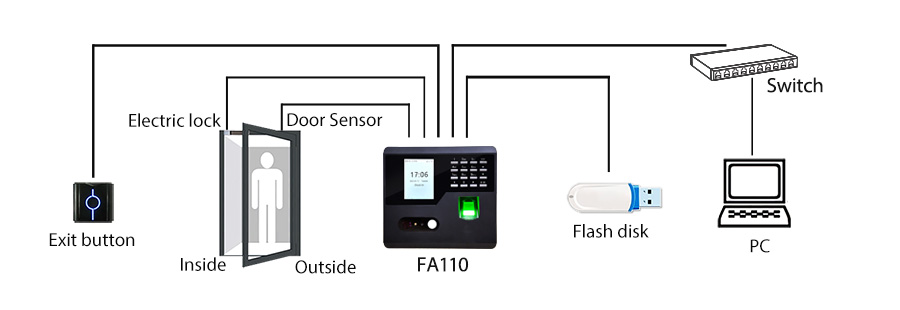

Diagram Of FA110 Access Control Terminal

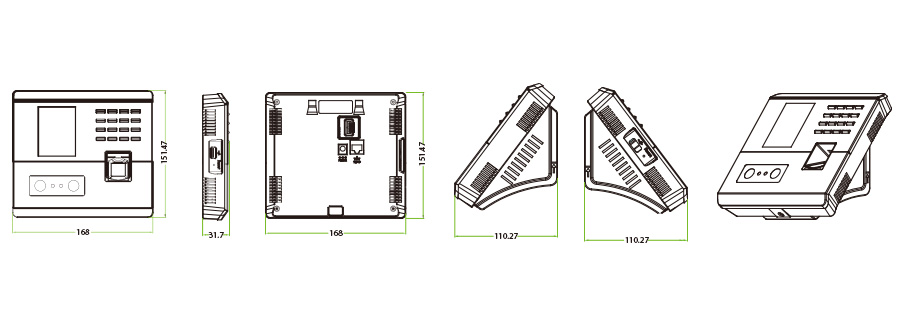

Dimension Of FA110 Access Control Terminal
Software Of FA110 Access Control Terminal
