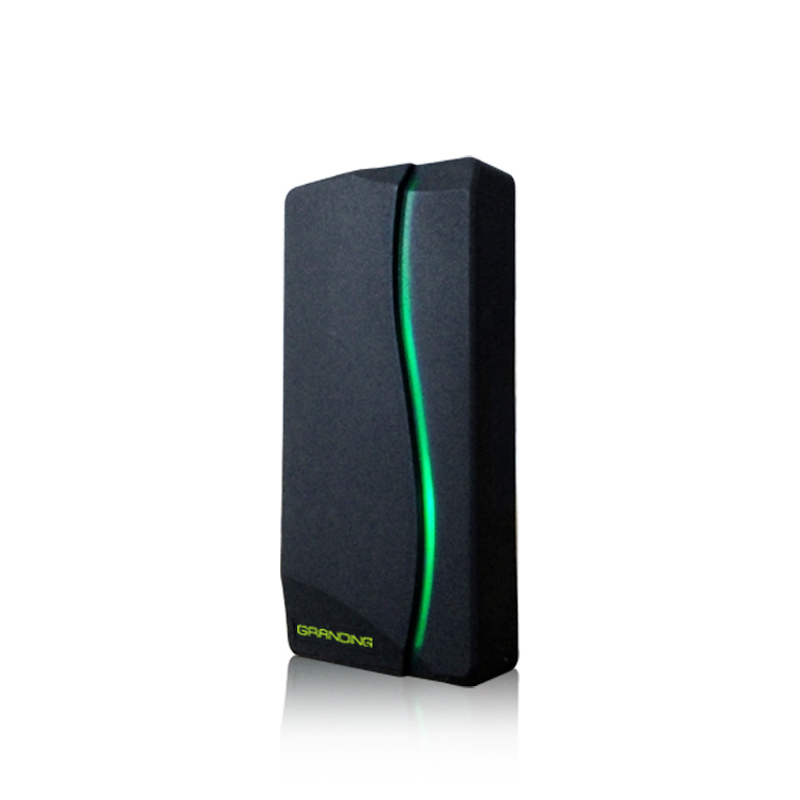

Standalone Waterproof IP67 Based Proximity RFID Card Access Control Reader
Special Features: Access Control System
Network: Standalone
Application: Indoor Or Outside With Shell
Verification Model: FPS, Card, PIN
Fingerprint Capacity: 2,000Cards
Opening Hours: 0~99 Seconds Adjustable,(factory Default Is 5 Seconds)
Card Reading Distance: 3~9cm
Access Control Interface: Electric Lock, Door Sensor, Alarm, Exit Button, Door Bell
Waterproof Level: IP65
Operating Voltage: DC12V
Standalone Waterproof IP67 Based Proximity RFID Card Access Control ReaderAccess Control System D8-RE Introduction
Standalone Waterproof IP 67 Based Proximity RFID Card Access Control Reader
♦ Stand-Alone Proximity Card Reader.
♦ Use in small businesses, homes, parking structures, apartments, and other locations.
♦ Sealed and weatherproof (IP67). Mounts easily to interior and exterior walls.
♦ Attractive tri-color wave-shaped LED status bar indicates proximity reader’s mode and status.
♦ Output relay for either timed (1 to 180 seconds) or “Toggle” mode.
♦ Buzzer is programmable for audible confirmation or silent mode.
♦ Up to 100 user cards can be programmed.
♦ User cards easily deleted. Delete a single card, or all cards.
♦ Up to 5 “Master” cards can be programmed.
Specification
| Model | D8-RE |
| User Card | No LCD Display |
| Speaker | Programmable audio buzzer for audible confirmation or silent mode |
| Capacity | Card capacity: 100 user cards, 5 Master cards, Log capacity: N/A |
| Identifications | <=20ms |
| Power Supply | 110/220VAC-12VDC 3A (PS-3A is optional item) |
| Standard Function | Standalone, no network connection, simple 1 door controller built-in relay (Com, NO, NC); 1-180 seconds relay time delay, or toggle mode |
| Access Mode | Card Only |
| Environment Function | Operation temperature: -20-70 degree Operation humidity: 20%-80% |
| Machine Size | 95(L)*45(W)*18(H)mm |

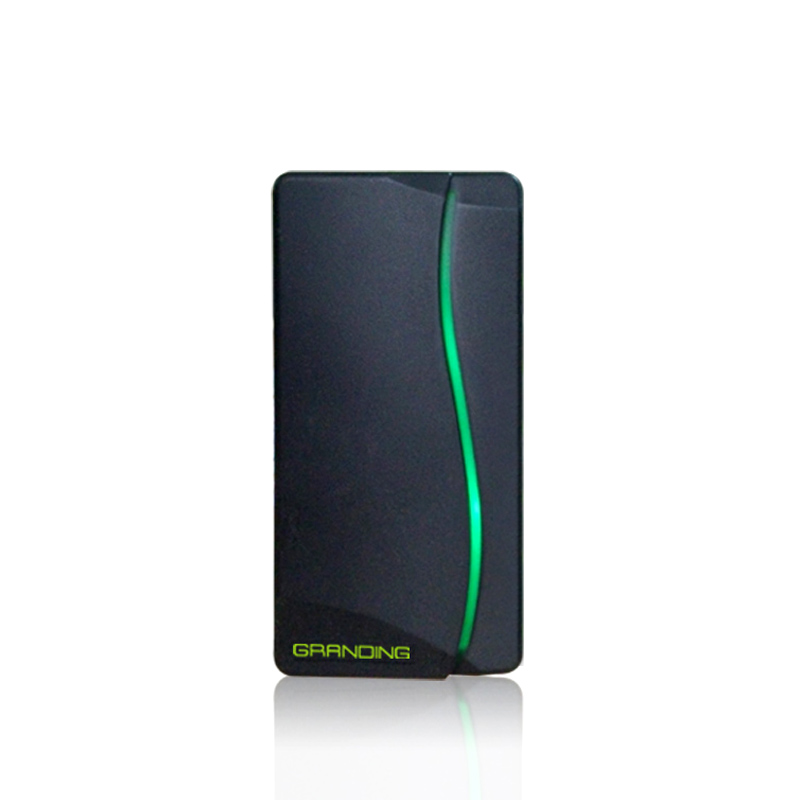

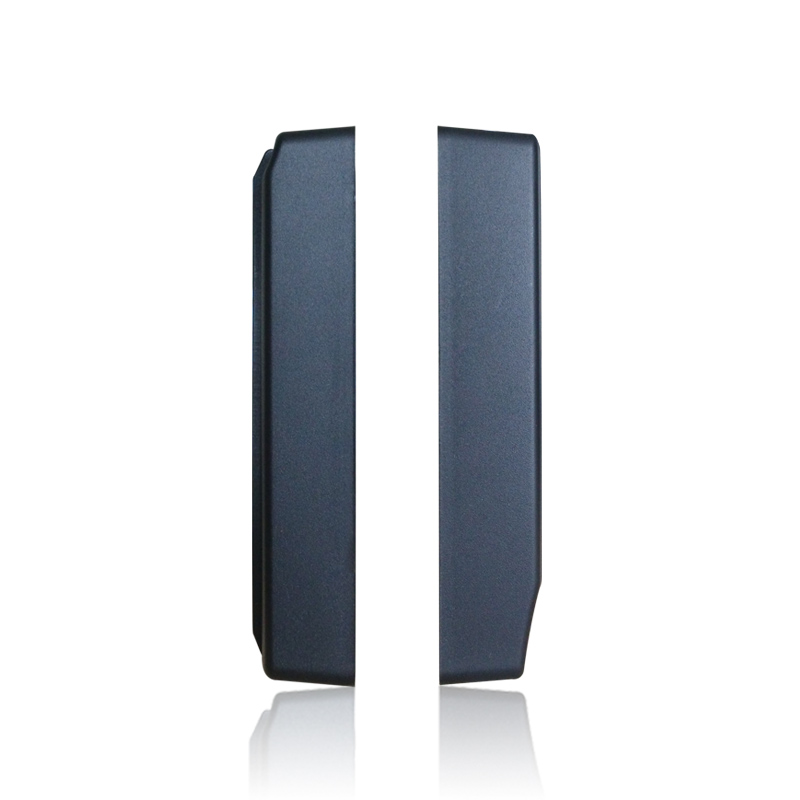

Product Display

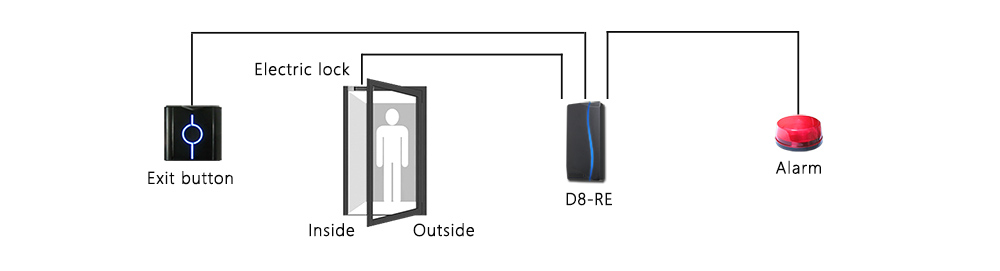

Diagram Of Access Control D8-RE
FAQ
1. Q: Do you have any MOQ limit?
A: For your convenience, we can accept 1 pc. But we offer better price for big order.
2. Q: What if the products have problems?
A: We offer a 1-year warranty except for the man-made damage. And we can offer any technical support for operation problems.
3. Q: Can the device’s language be in other languages?
A: Yes, of course. Multi-language can be customized. Our device supports English, Spanish, Portugal, Russian, Arabic, French, German, etc.
4. Q: What about the Payment?
A: You can pay for the order via T/T, Western Union, PayPal, Alibaba payment, L/C, DP
5. Q: How do you ship the goods?
A: Small order: Express like DHL, UPS, TNT, FedEx Big order: By Sea or by airline.
6. Q: How can I get a sample to check your quality?
A: You can require samples to check our quality. You should pay for the sample and freight cost, if you order more than 500 pcs, we return the sample cost to you.
7. Q: What about the lead time for mass production?
A: small order: 1 week after payment Big order: 2-3 weeks.
8. Q： Can you supply the relevant documentation?
Yes, we can provide most documentation including Certificates of Analysis / Conformance; Insurance; Origin, and other export documents where required
9. Q: Where can I get the price?
A: We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us, in your
