RFID Card and QR Code Access Control Turnstile QR code access control reader with USB,RS232 or TCP/IP Interface
Reservation Now
Detail






Place of Origin: SHANGHAI,CHINA

Brand Name: GRANDING

Certification: CE,FCC

Model Number: QR300


Quick Detail:

Frequency:125KHz+13.56Mhz+QR Code

Communicate:Wiegand 26/34bits & RS485

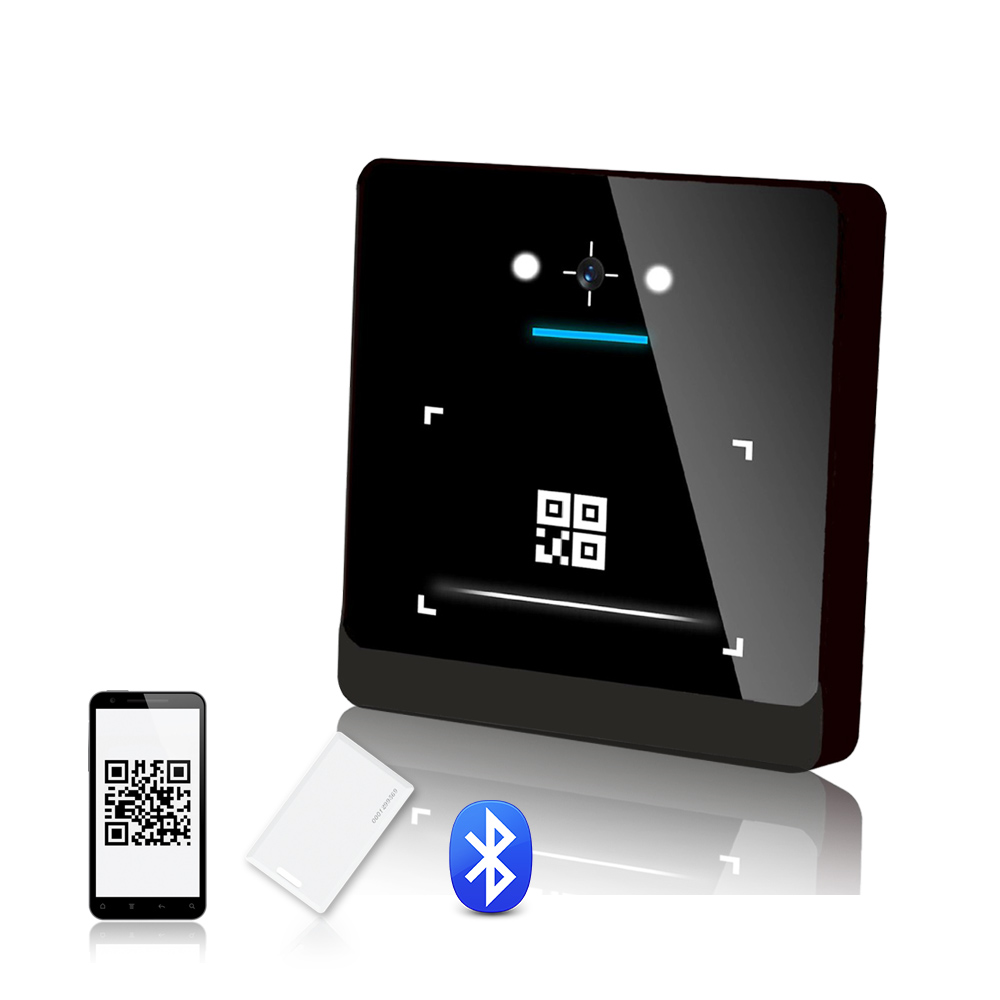

Identification Method:QR Code|IC Card|ID Card|NFC Card

Reading Angle:Rotation Angle 360°,elevation Angle±65°

Scanning Angle:75°(horizontal),55°(vertical),85°(diagonal)

SupportQRCodeFormat:QRCode,Data,Matrix(optional),PDF417(optional),etc.

Store Users:30,000

Reading Speed:<200 Milliseconds


Features:

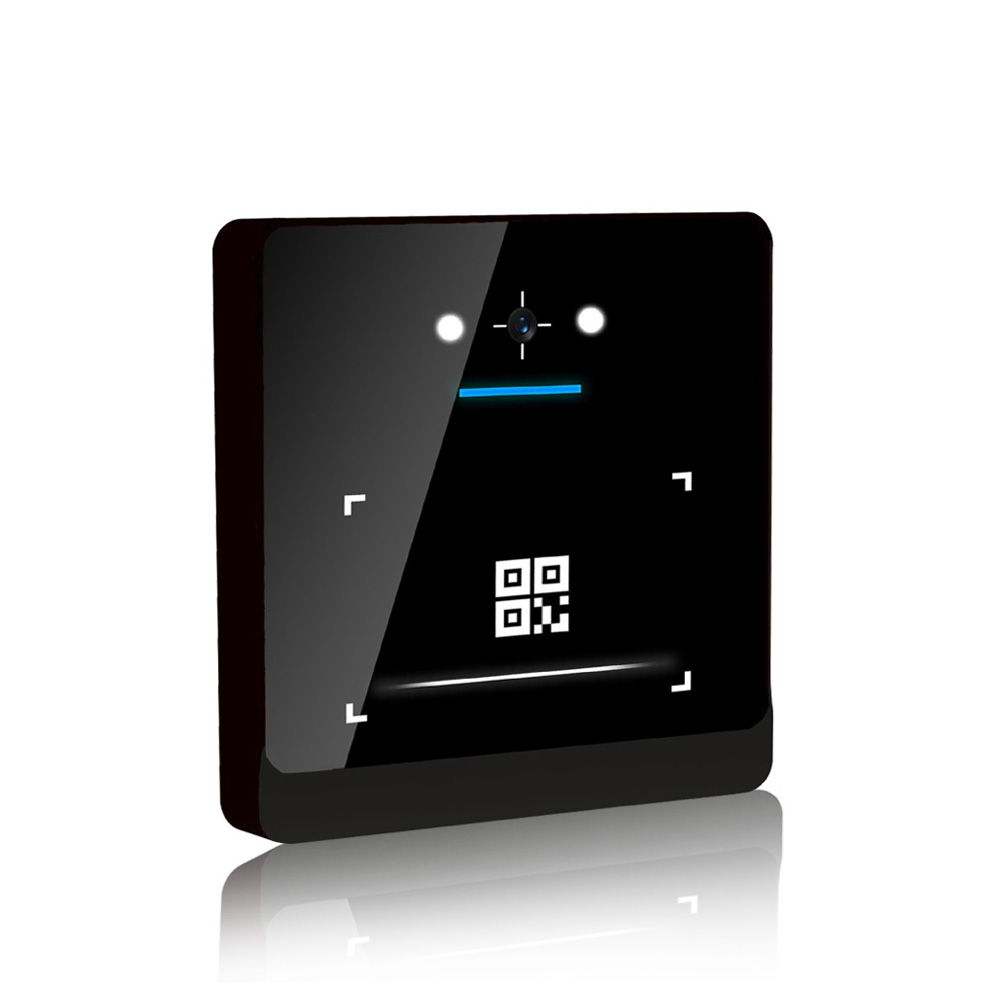

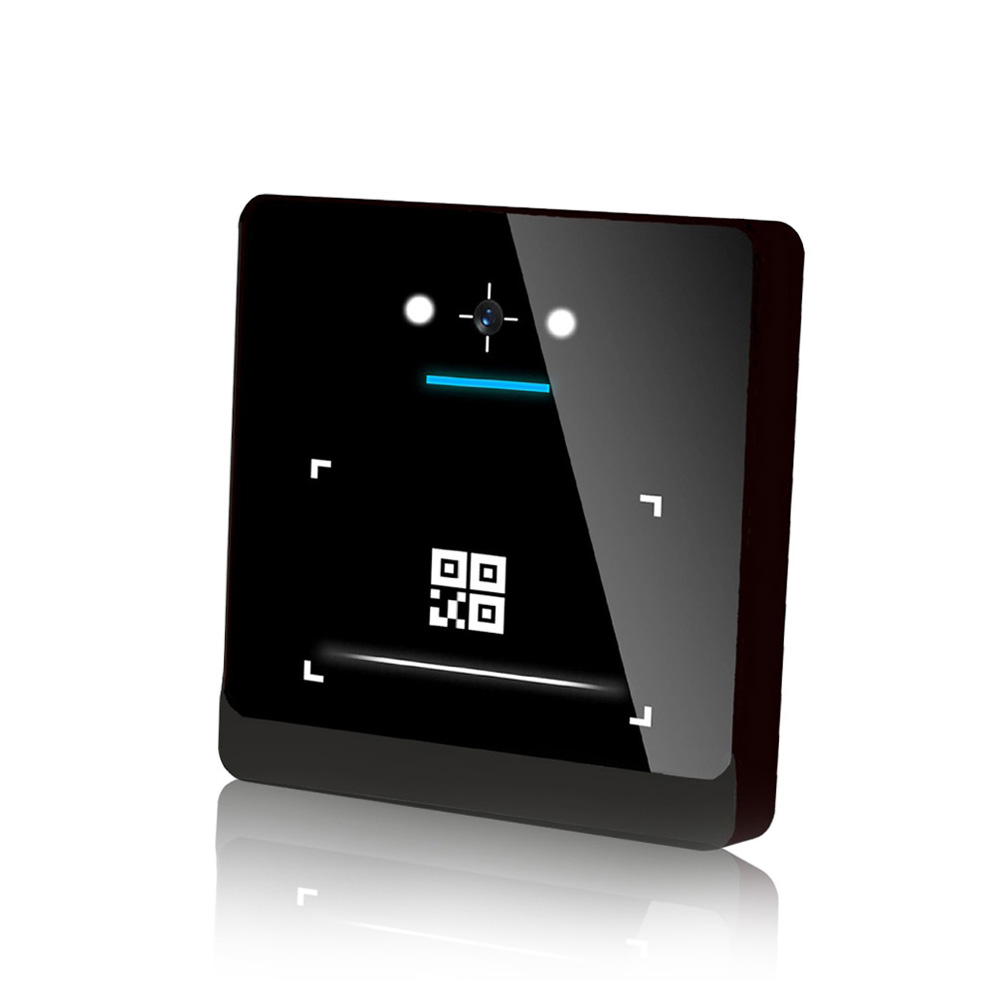

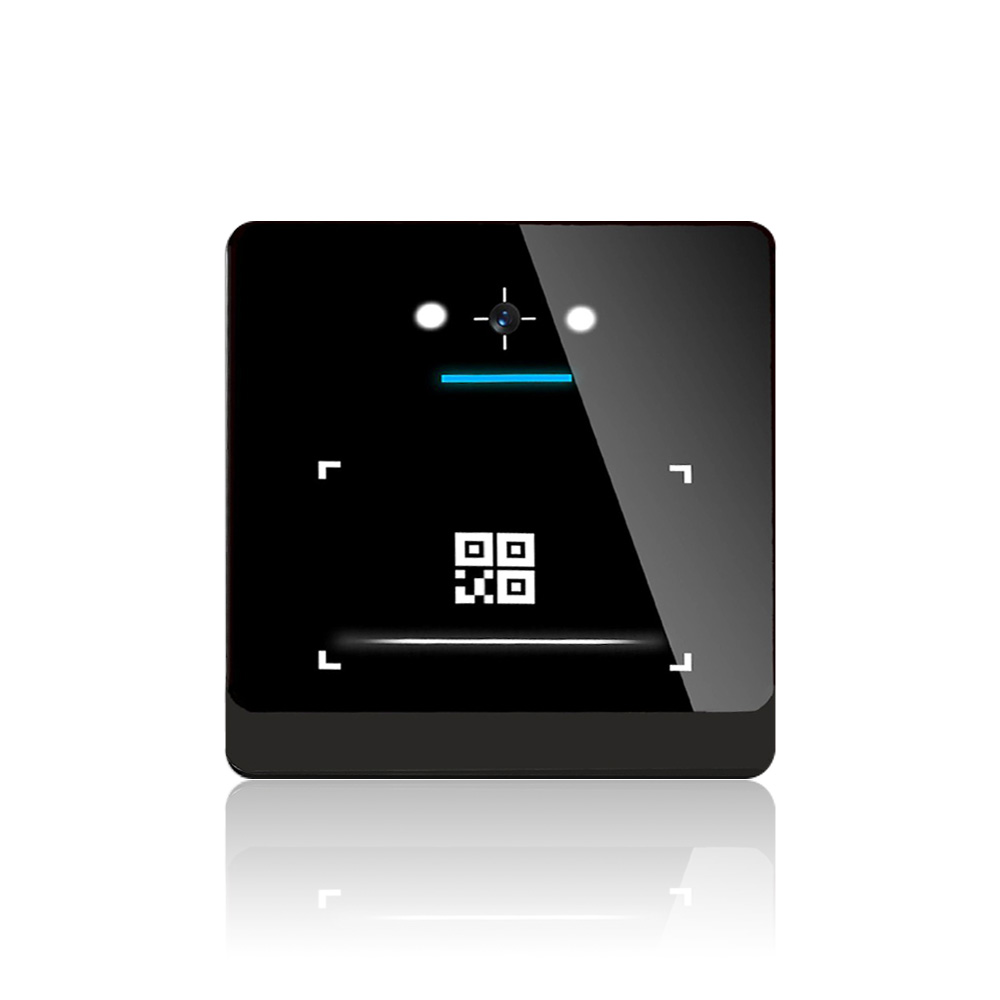

QR300 QR code access control card reader is a high-end smart access control card reader with a standard 86 structure and ABS material shell; the panel is made of 9H tempered glass, which has high scratch resistance and high explosion resistance; IPX7 waterproof internal potting and sealing treatment is comprehensive Waterproof; dual-lamp supplement light high-definition scanning has wide view ingangle, fast speed, high recognition rate, strong compatibility, and can be connected to any brand access controller that supports Wiegand/RS485 ommunication. Currently, it is widely used in commercial office buildings, real estate, scenic tourism, and communities Visitor access management, supporting gates,access control, visitor machines, smart homes, etc.


Specifications:


Model

QR100

Product Description

RFID +QR code reader

Communicate

Wiegand 26/34bits & RS485

Identification method

QR code|IC card|ID card|NFC card
(At the same time can support NFC, ID, QR code authentication)

Reading angle

Rotation angle 360°,elevation angle±65°,deflection angle±65°

Scanning angle

75°(horizontal),55°(vertical),85°(diagonal)

Support QR code format

QR Code, Data Matrix(optional),PDF417(optional),etc.

Store users

30,000

Operating temperature

-20℃to 60℃

Relative humidity

5% to 95%

Ambient light

Direct sunlight, micro light source at night

Reading Speed

<200 milliseconds

Input power

DC12V 500mA (support wide voltage 5~30V)

physical dimension

86*86*13 mm

Recognition distance

Standard distance 5-30 cm

QR code support range

Wiegand 26-bit support range (0-255),(1-65535);
Wiegand 34-bit support range 1-42949672;
RS485 support range is 1024 characters

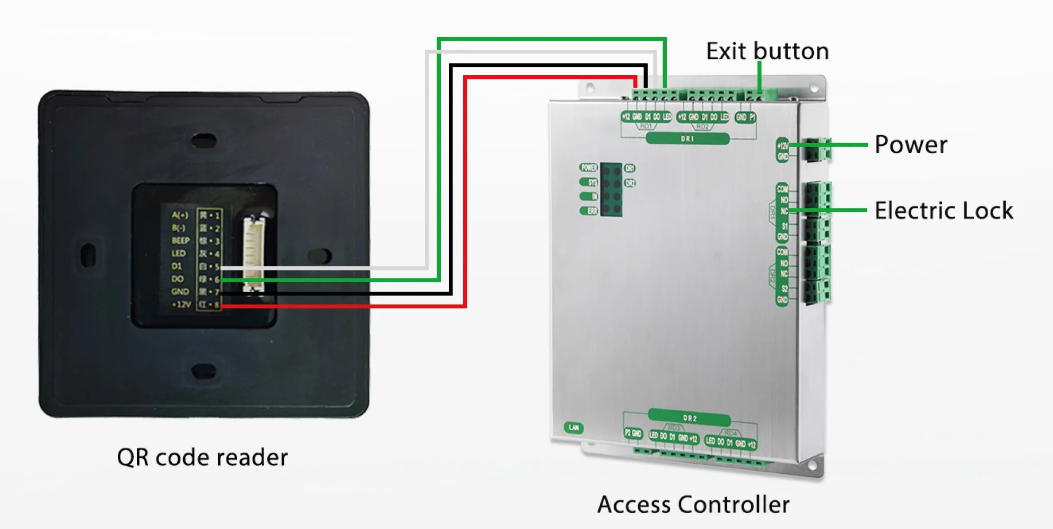

Diagram:
