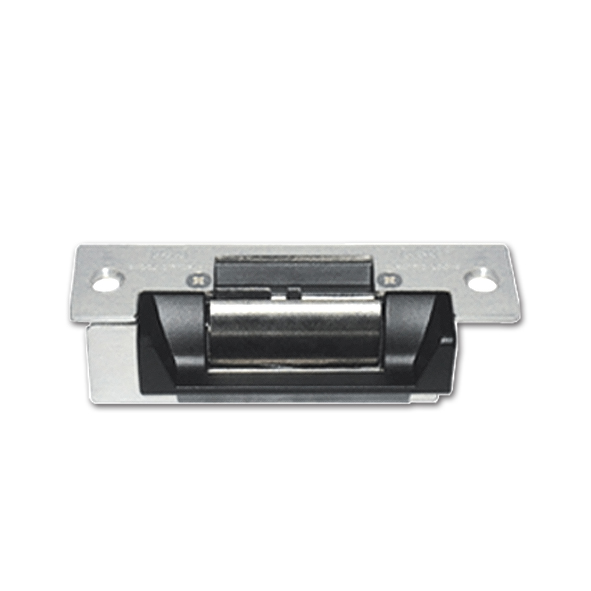

EC3101K High security surface mount electric door strike access control security systems

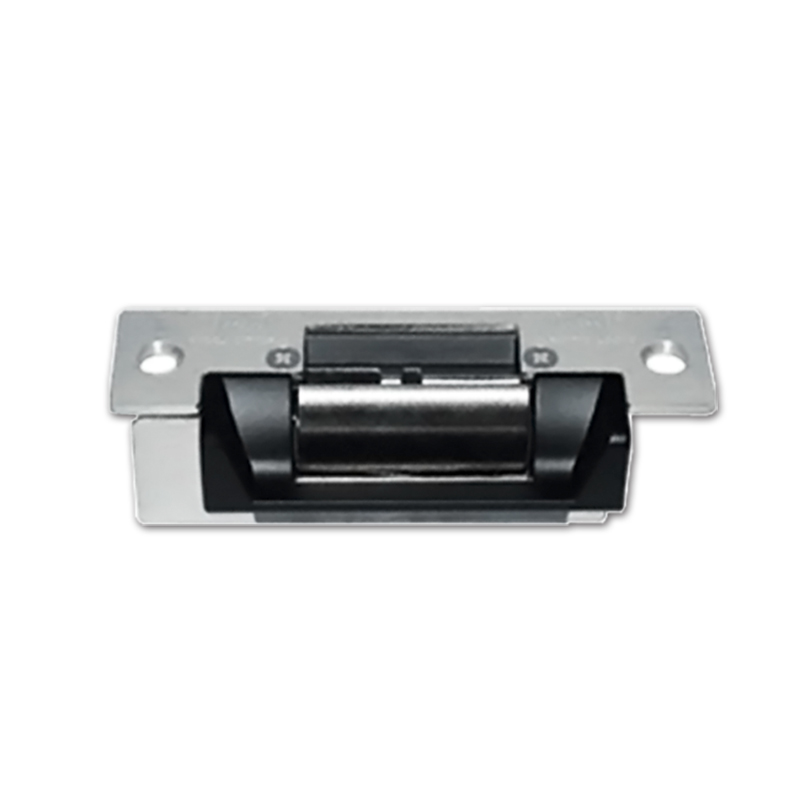

Electric Strike EC3101K Application For Wooden Door Or Stainless Steel Door Of Holding Force 400KG
Reservation Now
Detail



、

Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EC3101K


Quick Detail:

Product Name:Electric Strike

Holding Force:400KG

Power Supply:12VDC INPUT

Delay Time:N/A

Type Of The Door:Swinging 90 Degree Wooden Door Or Stainless Steel Door


Features:

1. Power to open

2. Magnetic lock, no mechanical damage

3.No delay time

4. Voltage:12VDC INPUT

5. Working current: 240mA;

6. Holding force: 400KG

7. Application for swinging 90 degree wooden door
or stainless steel door

Specifications:

Lock type

Dimension

Electric Strike

Lock body size: 45x17x11mm

Power to Open

Package size:


170X50X45mm

Holding Force

Opening mode

400Kg

Swinging door 90 degree

Power supply

Gross Weight

12VDC

0.4Kg

Current consumption

Environment

Working cyrrent:240mA

Operation temperature: -20°C
~ 55°C

normal atmospheric temperature+8°C

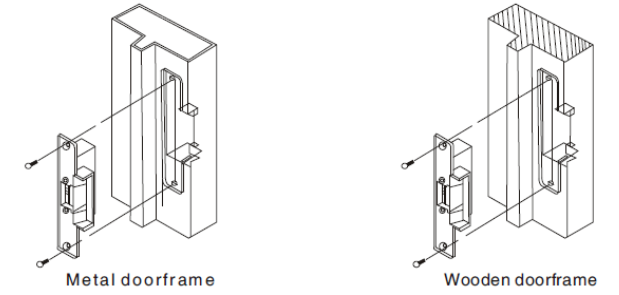

APPLICATION DOOR


Application for swinging 90 degree wooden door or stainless steel door
