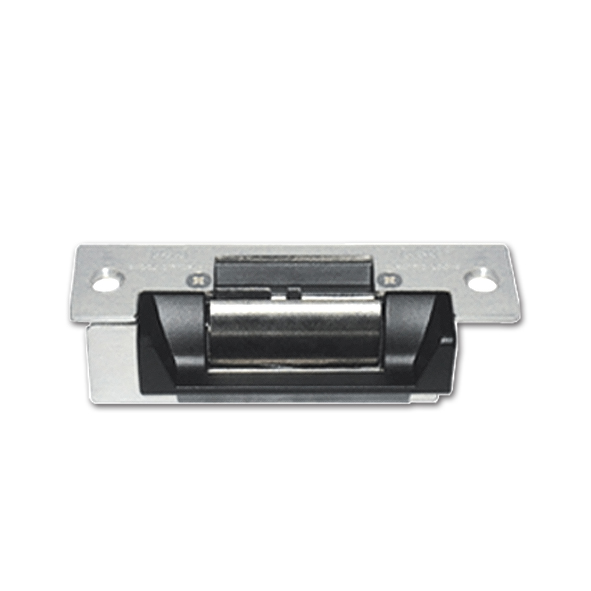

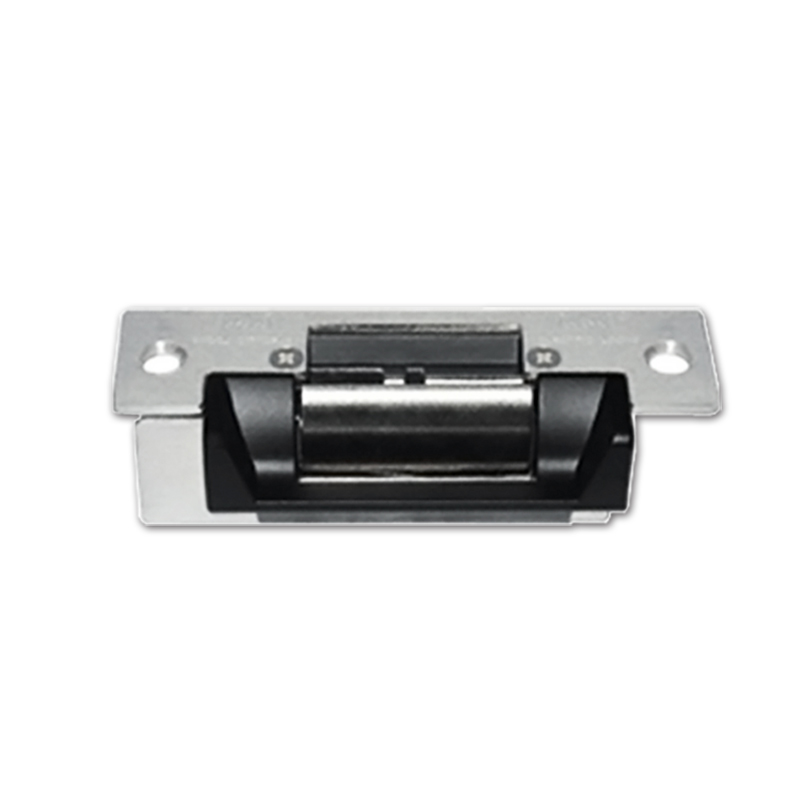

EC3103K 400KG electric strike lock , power door lock for swinging wooden or stainless steel door
  • EC3103K 400KG electric strike lock , power door lock for swinging wooden or stainless steel door
    • 1/1
  • EC3103K 400KG electric strike lock , power door lock for swinging wooden or stainless steel door

EC3103K 400KG electric strike lock , power door lock for swinging wooden or stainless steel door

Application All Type Of Door Electric Bolt EB200BL Support Swinging Door 180 , Signal Output
Reservation Now
Detail



Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EC3103K


Quick Detail:

Product Name:Electric Strike

Holding Force:400KG

Power Supply:12VDC INPUT

Delay Time:N/A

Type Of The Door:Swinging 90 Degree Wooden Door Or Stainless Steel Door


Features:

1. Power to Lock

2. Magnetic lock, no mechanical damage

3.No delay time

4. Voltage:12VDC INPUT

5. Working current:120mA;

6. Holding force: 400KG

7. Application for swinging 90 degree wooden door
or stainless steel door


Specifications:

Lock type

Dimension

Electric Strike

Lock body size: 45x17x11mm

Power to Lock

Holding Force

Opening mode

400Kg

Swinging door 90 degree

Power supply

Gross Weight

12VDC

0.4Kg

Current consumption

Environment

Working cyrrent:120mA

Operation temperature: -20°C
~ 55°C

　

normal atmospheric temperature+8°C

APPLICATION DOOR

　

Application for swinging 90 degree wooden door or stainless steel door
