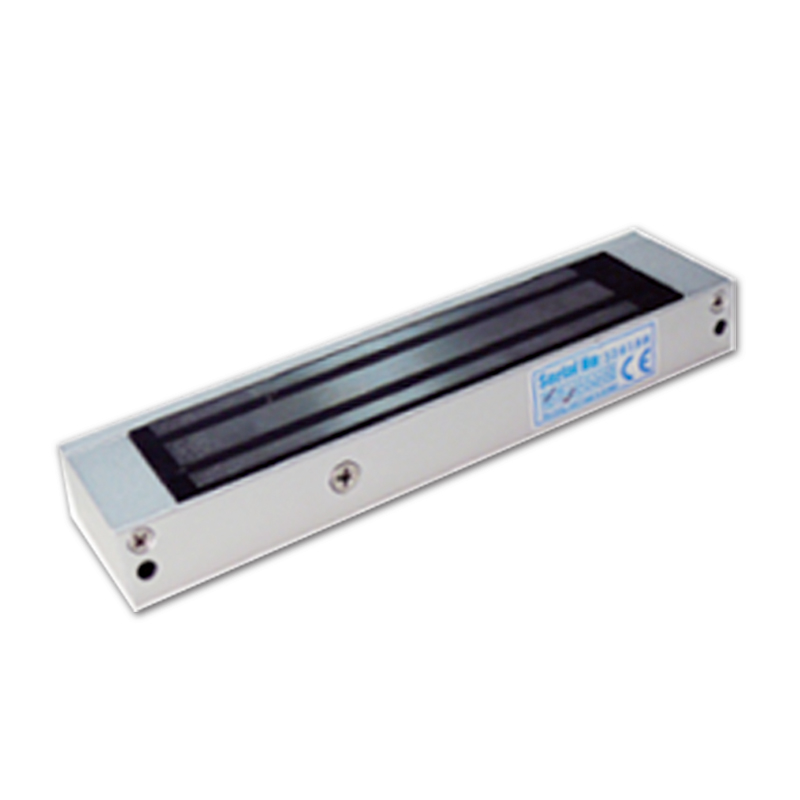

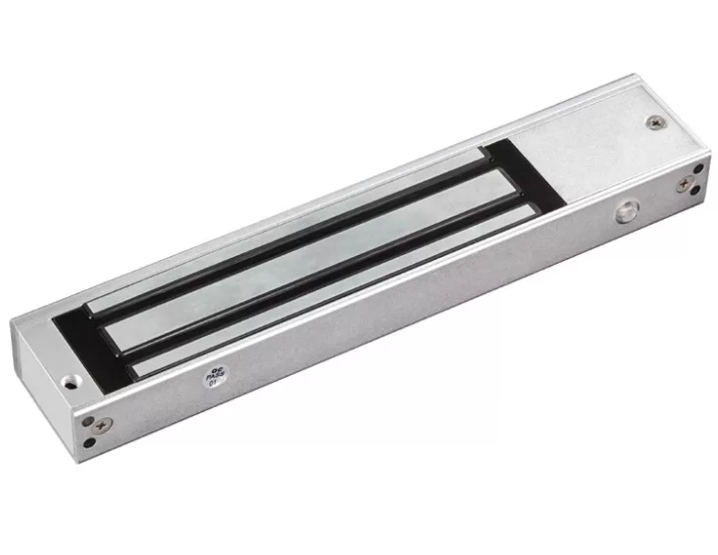

EM150A Hotel Electric Lock , small magnetic locks for ACCESS CONTROL SYSTEM

Application All Type Of Door Electric Magnetic Lock EM150A Of Holding Force 150 KG

Reservation Now

Detail

Place of Origin: China

Brand Name: Granding

Certification: CE/FCC

Model Number: EM150A

Quick Detail:

Product Name:Magnetic Lock

Holding Force:150KG

Power Supply:12VDC

Type Of The Door:All Type

Open Model:Swinging Door 90

Features:

1. Power to lock;

2. Magnetic lock, no mechanical damage

3. power supply:12VDC

4. Holding force: 150KG

5. With LED, Signal output( NO, NC, com) or time delay.

6. starting current:380mA standby current:380mA

7. Swinging door 90

8. Application all type of door fire exit path, no frame door can choose bracket

Specifications:

Lock type/fail safe	Dimension
Magnetic lock	Lock Dimension: 168x38x23mm
Power to lock	Package size: 230X85X30mm
Holding Force	Opening mode
500KG	Swinging door 90 degree
Power supply	Gross Weight
12VDC	1kg
Current consumption	Environment
Starting current:640mA	Operation temperature: -20°C ~ 55°C
standby current:640mA	Operation humidity: 20% ~ 80%

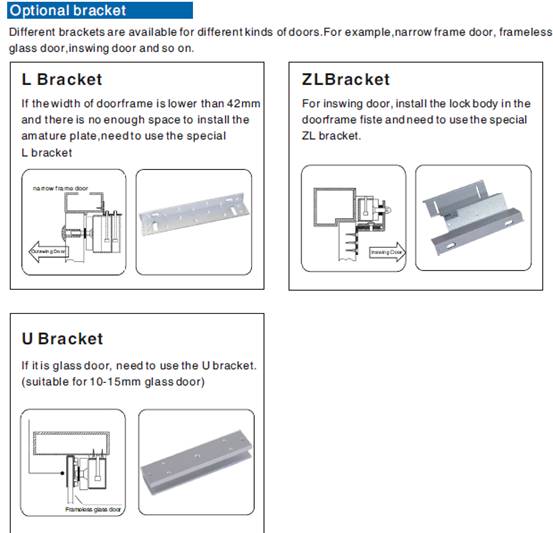

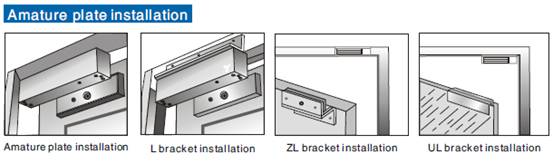

Bracket selection	APPLICATION DOOR
U type, Z type and L type (optional)	All type of door fire exit path, no frame door can choose bracket
Function Support	Customize Function
N/A	Time delay
